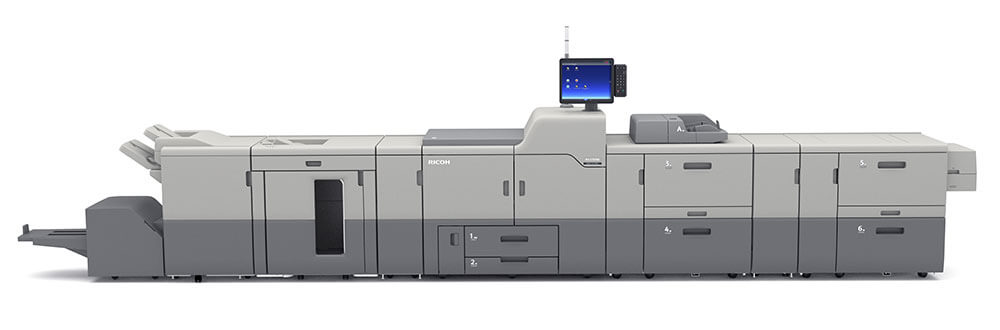

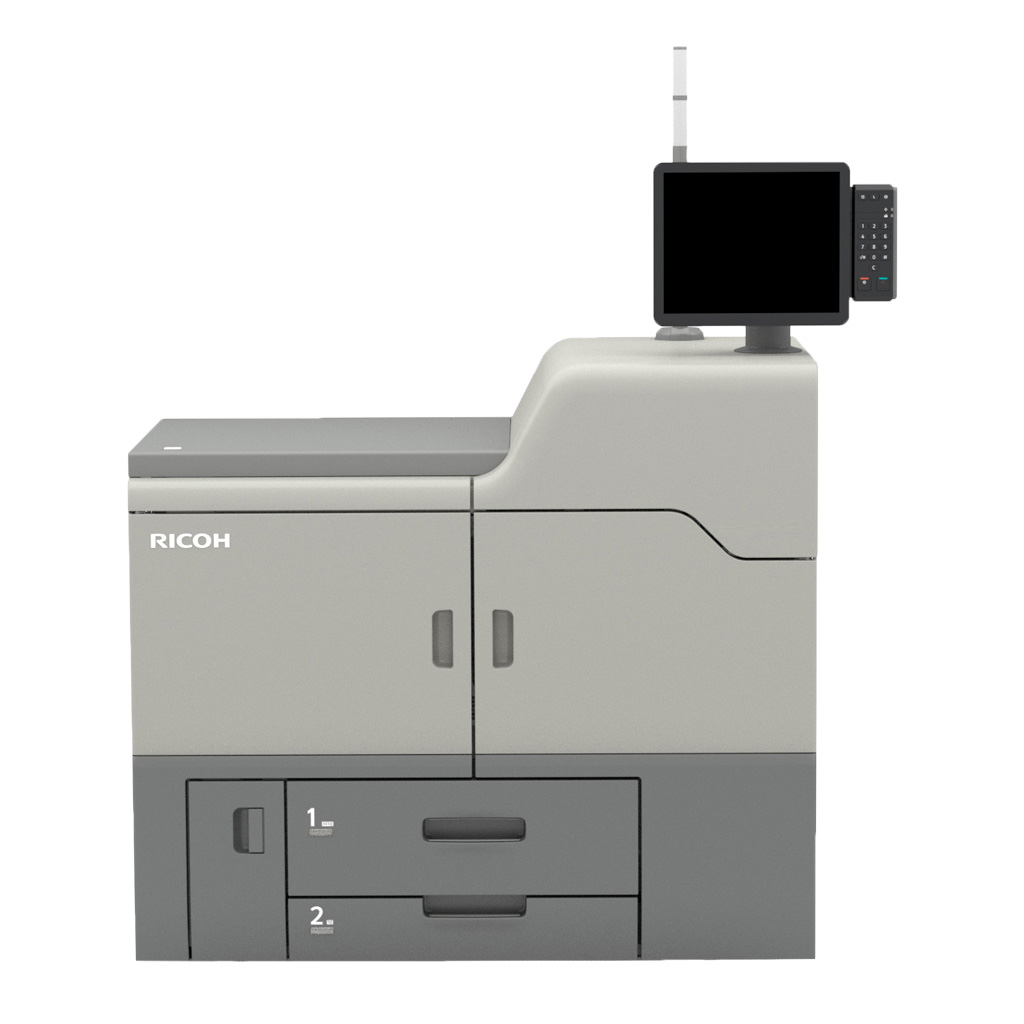

Pro C7200X Graphic Arts Edition Colour production printer

Prints up to 85 ppm
Up to 360 g/m²
Banner sheet duplex printing
Fifth toner station

Configure your device here

Get customers excited with more colour choices

Diversify your printing capabilities, without breaking the budget with the Pro C7200X, Graphic Arts Edition, and its fifth colour printing capability. With an increasing range of special colours including white (available in a single pass), clear, invisible red and various neon options.

More choice, more revenue

Deliver beautiful output on short print runs and appease demanding customers. Print a wider range of jobs with double-sided, oversize printing up to 700 mm in length and on heavy weight stocks up to 360 gsm. Impress customers with the ability to add more colours to print jobs: for example, highlight with neon yellow, provide security with invisible red, boost gamut with pink, and give imagery a lift with clear varnish. White can be printed in a single pass for spectacular results on dark media. The paper library makes sure everything is calibrated and ready to go. Further streamline your workload with inline finishing options, ranging from perfect binding and hole punching to multi folding and ring binding.

More paper, less downtime
Paper capacity can be increased to 16,200 sheets
Print on heavily textured stock
Amaze your customers with impressive coverage and rich appearance on deeply textured stock
Precision with speed
High definition imaging, auto-calibration, auto-registration and mechanical paper registration
Do it yourself
Handle maintenance issues in house with Trained Customer Replaceable Units (TCRUs) to maximise uptime
Find what you need
Use the paper library to configure jobs for specific media and stocks
Stay in control
Choice of two EFI Fiery controllers or Ricoh TotalFlow controller with direct connectivity to Heidelberg Prinect, Kodak Prinergy or Screen Equios workflows

Finish it off in style

Improve turnaround times and increase your print capacity. Ricoh’s line of finishers make it easy to print more types of documents, quickly. Create professional saddle-stitched booklets with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.

Specifications

Functions: Print
Colour: Yes
Printer controller - standard: GWNX
Printer controller - optional: EFI Fiery colour controller E-46A
EFI Fiery colour controller E-86A
Ricoh TotalFlow Print Server R-62A
HDD: 640 GB (320 GB x 2)
CPU: 1.91 GHz
Memory - standard: 4 GB
Operation panel: 17-inch touch panel

Physical dimensions (WxDxH)—mainframe

1,320 x 910 x 1,218 mm

Physical dimensions (WxDxH)—other

865 x 730 x 1,000 mm—4,000-sheet LCT RT5110
1,054 x 730 x 1,000 mm—4,400-sheet vacuum-feed LCT RT5120
330 x 730 x 1,000 mm—Bridge unit BU5010
690 x 561 x 210 mm—500-sheet multi-bypass tray BY5020
495 x 530 x 175 mm—1,000-sheet A3 tray Type TK5010
1,290 x 730 x 1,000 mm—730-sheet vacuum-feed banner sheet tray Type S9
1,090 x 561 x 210 mm—500-sheet multi-bypass banner sheet tray Type S9, when attached to multi-bypass tray BY5020
1,688 x 1,286 x 950 mm—BDT VX 370-1280 banner sheet feeder
730 x 1,220 x 1,090 mm—Plockmatic LCT3500
330 x 730 x 1,010 mm—Buffer pass unit Type S9
55 x 485 x 190 mm—Decurler unit DU5060
996 x 730 x 1,126 mm—3,000-sheet finisher SR5050, with all extendable trays closed
996 x 730 x 1,126 mm—2,500-sheet booklet finisher SR5060, with all extendable trays closed
1,115 x 591 x 555 mm—Booklet trimmer TR5040
1,113 x 730 x 1,490 mm—4,500-sheet finisher SR5110
1,113 x 730 x 1,490 mm—3,500-sheet booklet finisher SR5120
1,115 x 591 x 555 mm—Trimmer unit TR5050
740 x 730 x 1,290 mm—Cover interposer CI5040
870 x 730 x 1,010 mm—Ring Binder RB5020
540 x 730 x 1,290 mm—2-tray cover interposer CI5030
470 x 730 x 1,000 mm—Multi-folding unit FD5020
1,090 x 791 x 1,387 mm—Perfect Binder GB5010
900 x 730 x 1,010 mm—High-capacity stacker SK5040
1,200 x 700 x 1,100 mm—Plockmatic high-capacity interposer HCI3500
900 x 680 x 1,060 mm—Plockmatic multi-purpose stacker MPS1260
1,420 x 700 x 970 mm—Plockmatic PBM 5035S/PBM 5035, including stacker
265 x 253 x 136 mm—RPIP interface box Type S3

Weight—mainframe

580 kg or less

Weight—other

185 kg or less—4,000-sheet LCT RT5110
230 kg or less—4,400-sheet vacuum-feed LCT RT5120
40 kg or less—Bridge unit BU5010
20 kg or less—500-sheet multi-bypass tray BY5020
10 kg or less—1,000-sheet A3 tray Type TK5010
7 kg or less—730-sheet vacuum-feed banner sheet tray Type S9
9.5 kg or less—Multi-bypass banner sheet tray Type S9
443 kg—BDT VX 370-1280 banner sheet feeder
250 kg—Plockmatic LCT3500
90 kg or less—Buffer pass unit Type S9
5 kg or less—Decurler unit DU5060
112 kg or less—3,000-sheet finisher SR5050
112 kg or less—2,500-sheet booklet finisher SR5060
75 kg or less—Booklet trimmer TR5040
135 kg or less—4,500-sheet finisher SR5110
160 kg or less—3,500-sheet booklet finisher SR5120
75 kg—Trimmer unit TR5050
50 kg—Cover interposer CI5040
140 kg or less—Ring Binder RB5020
45 kg or less—2-tray cover interposer CI5030
92 kg or less—Multi-folding unit FD5020
350 kg or less—Perfect Binder GB5010
120 kg or less—High-capacity stacker SK5040
15 kg or less—High-capacity stacker SK5040 roll-away cart
250 kg—Plockmatic high-capacity interposer HCI3500
65 kg—Plockmatic multi-purpose stacker MPS1260 lift unit
5 kg—Plockmatic multi-purpose stacker MPS1260 docking unit
0.55 kg or less—RPIP interface box Type S3

Minimum space requirements

1,000 mm—front
1,000 mm—left
1,000 mm—right
800 mm—rear

Note: PM parts maintenance tasks require additional rear clearance.

Max monthly volume: 240,000 prints
Machine life: 14,400,000 prints or 5 years, whichever comes first
Duty cycle: 650,000 prints per month
Colour ratio: 80%

Supply yields

45,000 sheets per 1,482 g bottle of black toner
45,000 sheets per 1,482 g bottle of cyan toner
45,000 sheets per 1,482 g bottle of magenta toner
45,000 sheets per 1,482 g bottle of yellow toner
27,000 sheets per 1,553 g bottle of clear toner
17,500 sheets per 1,553 g bottle of white toner
25,700 sheets per 1,484 g bottle of neon yellow toner
25,700 sheets per 1,484 g bottle of neon pink toner
17,300 sheets per 1,100 g bottle of invisible red toner
18,000 sheets per 1,310 g bottle of gold toner
18,000 sheets per 1,310 g bottle of silver toner

Note: All CMYK toner yields are measured with the A4/8.75% coverage chart, based on 50 pages per job and 80% duplex printing. Clear, white, neon yellow, neon pink, invisible red, gold, and silver toner yields are measured with the A4/15% coverage chart with 50 pages per job and 80% duplex printing.

136,000 sheets per waste toner bottle

Note: Based on A4/70% colour rate, 35% full colour and four colour coverage, 6% black and white.

5,000 staples per Type M cartridge for finishers SR5050 and SR5060—normal staple
5,000 staples per Type U cartridge for finisher SR5060—Saddle stitch staple
5,000 staples per Type M staple cartridge refill for finishers SR5050 and SR5060—normal staple
5,000 staples per Type T staple cartridge refill for finisher SR5060—saddle stitch staple

75 sets per ring cartridge

Standard input capacity (sheets)

2,500

Maximum input capacity (sheets)

16,200

Maximum output capacity (sheets)

13,000

Paper input configuration - standard

1,000-sheet x 2 paper input tray, 500-sheet paper input tray, duplex unit

Paper input configuration - optional

1,000-sheet A3 tray Type TK5010, 4,000-sheet LCT RT5110, 500-sheet multi-bypass tray BY5020, Multi-bypass attachment kit for vacuum feed LCT Type S9, 4,400-sheet vacuum-feed LCT RT5120, 500-sheet multi-bypass banner sheet tray Type S9, 730-sheet vacuum-feed banner sheet tray Type S9, Bridge unit BU5010, BDT VX 370-1280 banner sheet feeder, Plockmatic LCT3500

Paper output configuration - optional

Buffer pass unit Type S9, Decurler unit DU5060, Perfect Binder GB5010, 2-tray cover interposer CI5030, Multi-folding unit FD5020, Ring Binder RB5020, High-capacity stacker SK5040, 2,500-sheet booklet finisher SR5060, Booklet trimmer TR5040, 3,000-sheet finisher SR5050, Punch units PU5020, 3,500-sheet booklet finisher SR5120, 4,500-sheet finisher SR5110, Punch unit PU5030, Trimmer unit TR5050 for booklet finisher SR5120, Cover interposer CI5040

Paper output configuration - 3rd Party

Plockmatic HCI3500 high-capacity interposer, Plockmatic PBM 350 booklet maker, Plockmatic PBM 500 booklet maker, Plockmatic MPS1260 multi-purpose stacker, Plockmatic PBM 5035S long sheet stitcher, Plockmatic PBM 5035 long sheet stapler, Plockmatic SBT Square Back Trimmer, GBC StreamPunch Ultra

Supported media

Standard paper input tray 1
Plain paper, recycled paper, pre-printed, letterhead, pre-punched

Standard paper input tray 2
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock¹

LCT RT5110 trays 3 and 5
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

LCT RT5110 tray 4
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, label paper, textured paper

Vacuum-feed LCT RT5120
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², glossy/matte paper, OHP transparency, translucent paper, envelope, textured paper

Multi-bypass tray BY5020
Plain paper, recycled paper, pre-printed, letterhead, pre-punched, tab stock², translucent paper

Plockmatic LCT3500
Plain paper, index paper, coated paper, recycled paper

¹—Tab sheet holder option is needed when printing tab stock
²—Tab fence is needed when printing tab stock

Maximum paper size

13" x 19.2"

Media weight (g/m2)

52.3–360

Interfaces - standard: 10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
SD slot x 3—1 on the controller board, 2 on the operation panel
USB 2.0 Type A x 6—2 at rear of machine, 4 on the operation panel
USB 2.0 Type Mini-B x 1—on the operation panel
Network protocols - standard: TCP/IP (IPv4, IPv6)
MIB support: Standard
MIB-II (RFC1213)
Host Resources (RFC1514)
Printer MIB (RFC1759)
Printer Port Monitor MIB

Private
Ricoh original MIB

Print speed colour: 85 ppm
Print speed black and white: 85 ppm
Printing process: 4-drum dry electrostatic transfer system with internal transfer belt
Printing technology: Vertical-cavity surface-emitting laser (VCSEL)
Fusing: Oil-less belt-fusing method
Toner development: PXP-EQ chemical toner, polymerisation
Print resolution: 2,400 x 4,800 dpi—VCSEL
Page description languages (PDLs): Refer to Fiery controller field
Printer drivers: Refer to Fiery controller field
Printer driver features: Refer to Fiery controller field
Printer driver resolution: Refer to Fiery controller field
Duplex printing: Standard
Envelope printing: Supported—with optional LCT RT5110 and vacuum-feed LCT RT5120
Fonts: Refer to Fiery controller field
Maximum printable area: 320 x 480 mm
323 x 1,252 mm—with optional banner sheet tray
Fiery controller: Fiery colour controller E-46A or Fiery colour controller E-86A—optional
Printer drivers
Fiery E-46A
PCL 5c, PCL 6, PostScript 3—CPSI v3020 and APPE v4.4

Fiery E-86A
PostScript 3—CPSI v3020 and APPE v4.4

Printer driver fonts
136 fonts and 2MM—PostScript 3
80 fonts—PCL 5c and PCL 6

Fiery menu via operation panel
Supported

Print resolution
1,200 dpi, 2-bit
600 dpi with PCL 5c

Supported file formats
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS, PCL—Fiery E-46A
PS, PDF, EPS, TIFF, PDF/VT, PPML, VPS—Fiery E-86A

Variable Data Printing (VDP)
PPML v3, Fiery Free Form v1 and v2.1, PDF/VT-1 and PDF/VT-2
TotalFlow: TotalFlow Print Server R-62A—optional

Encryption: Encryption—print
Authentication: Simple network security setting
DHCP option 60 and 77
Other security features: Security features are provided by the Ricoh GWNX controller. The Fiery E-46A and Fiery E-86A controller security is based on the EFI Fiery security policy compliant with the EFI Fiery System FS350 Pro.

Standard: @Remote Embedded
Web Image Monitor
Device SDK
Optional: Device Manager NX
InfoPrint Manager
TotalFlow BatchBuilder
TotalFlow Prep
TotalFlow Production Manager
TotalFlow Supervisor
Ricoh ProcessDirector
FusionPro VDP Creator
FusionPro Expression
OL PlanetPress Connect
PrintShop Mail
EFI Digital StoreFront
EFI Graphic Arts Premium Edition
EFI Fiery Central
EFI JobFlow
EFI Impose & Compose

Power source: 220–240 V, 16 A, 50/60 Hz
Power consumption: 5,000 W or less—maximum power
4 W or less—Energy Saver Mode (Sleep Mode)
Power consumption—options: 1,000 W or less—4,400-sheet vacuum feed LCT RT5120
150 W or less—3,000-sheet finisher SR5050
150 W or less—2,500-sheet booklet finisher SR5060
250 W or less, maximum—Booklet trimmer TR5040
75 W or less, average—Booklet trimmer TR5040
150 W or less—4,500-sheet finisher SR5110
150 W or less—3,500-sheet booklet finisher SR5120
250 W or less, maximum—Trimmer unit TR5050
75 W or less, average—Trimmer unit TR5050
95 W excluding peak consumption—Cover interposer CI5040
400 W or less—Ring Binder RB5020
623 W or less—Perfect Binder GB5010
30 W or less—Decurler unit DU5060
240 W or less—Multi-purpose folding unit FD5020
131 W or less—High-capacity stacker SK5040
200 W or less—Buffer pass unit Type S9
Warm-up time: 300 seconds or less—mainframe
380 seconds or less—Perfect Binder GB5010
Sound power level: Mainframe
73 dB—standby
81 dB—operating

Full configuration
73 dB—standby
83 dB—operating
Emission levels: 4.0 mg/h or less—dust
4.0 mg/h or less—ozone
1.8 mg/h or less—styrene
2.0 mg/h or less—formaldehyde
Reduction of environmentally sensitive materials: RoHS
100% lead-free solder used in PCBs—lead
0%—PVC
100% chrome-free steel plates—hexavalent chromium
0%—cadmium
0%—PBB/PBDE
Energy saving standards: Energy Star v2.0—with GWNX, Ricoh TotalFlow Print Server, and EFI Fiery controllers
Safety standards: EN60950-1
IEC60950-1
CNS14336-1
Electromagnetic Compatibility (EMC) standards: EN55032 Class A
EN61000-3-2, EN61000-3-3
EN55024
EN301489-1, EN301489-3, EN301489-17
EN62311
EN50364
CNS13438 Class A
Identification of plastic components: All plastic components that weigh more than 25 g are identified in accordance with ISO 11469 standards.
Laser standards: EN60825-1
IEC60825-1
Wireless LAN standards: EN300328
EN300330
Radio Certificate (NCC)
