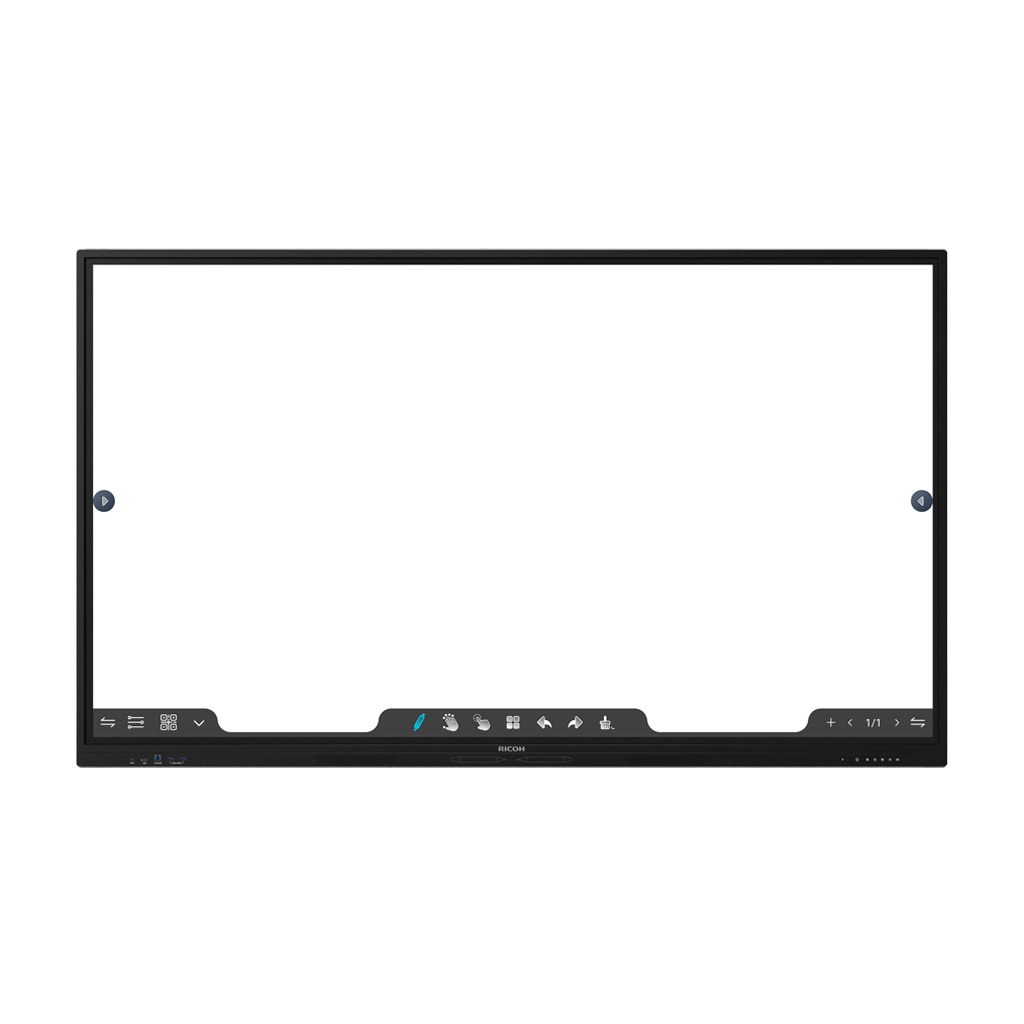

RICOH Interactive Whiteboard A8600 Interactive whiteboard

  • 86" touchscreen
  • 3,840 x 2,160 pixels
  • 400 cd/m2 brightness
  • Plug and Play Android apps
Related Links
When you need to work together - don’t let distance come between you

Make meetings collaborative wherever they are, with the new Ricoh Interactive Whiteboards.

Designed for business

With its easy-to-use interface and built-in Apps, the new whiteboards offer seamless communication and collaboration. Ideal for hybrid working, allowing multiple people to write on the same screen.

  1. Simple connectivity and usability
    It’s easy to sync your device to the screen, simply choose how you connect – HDMI, USB or USB Type-C.
  2. Effective split-screen presentation
    Using two screens is a standard most expect in work and presentations. Run two different apps or images side by side with the interactive whiteboard and get more from your meetings.
  3. Useful picture-in-picture function
    A picture can speak a thousand words – so add an image to your whiteboard with the picture-in-picture function. This could be data, charts or stock shots that help get your point across.
  4. Plug and Play Android Apps
    Embedded with Android OS, you can use all your favourite apps. Many apps are preloaded and ready for use to save you time, such as the whiteboard and wireless presentation apps.
Download Brochure

Specifications

What's included

Touch pen
2 pcs

Read this first and Quick Guide
In English, French, German, Spanish, Brazilian Portuguese

Remote controller
Yes

Batteries for remote controller
2 x AAA batteries

Power cord
Yes

USB-C cable
Yes—2 m

USB A-B cable
Yes—3 m

HDMI 2.0 cable
Yes—3 m

Plastic clamp
2 pcs

Physical dimensions (WxDxH)—mainframe
1,968 x 88 x 1,173 mm
Weight—mainframe
73 kg
Panel size
86 inches
Backlight
D-LED
Effective display area
1,895.04 x 1,065.96 mm
Resolution
3,840 x 2,160 pixels
Colour reproduction
1.07 billion colours (10-bit)
Brightness
400 cd/m2—typical
Contrast
1200:1
Pixel pitch
0.4935 mm
Response speed
8 ms
Viewing angle HV
178 degrees
Audio
Rear
1 x 3.5 mm mic and other audio source in
1 x 3.5 mm audio out
1 x SPDIF
Video

Rear
2 x HDMI 2.0 in
1 x DisplayPort in
1 x VGA in
1 x USB 2.0 Type A
2 x USB 3.0 Type A
1 x HDMI 2.0 out

Front
1 x HDMI 2.0 in

Touch technology
Infrared touch frame
Touch points
20
Touch resolution
32,768 x 32,768—interpolated
Touch output
HID Standard, USB 2.0 full speed
Touch panel cover glass
3.2 mm toughened glass
Interfaces - standard

Rear
2 x HDMI 2.0 in
1 x DisplayPort in
1 x VGA in
1 x Audio in
2 x LAN—10/1000 Base-T, 100 Base-TX (to OPS), 10/1000 Base-T (to Android)
1 x USB 2.0 Type A
2 x USB 3.0 Type A
1 x USB 3.0 Type B—touch interface
1 x Mic in
1 x SPDIF in
1 x HDMI 2.0 out
1 x Audio out
1 x RS-232 in

Front
1 x USB Type C
2 x USB 3.0 Type A
1 x USB 3.0 Type B—touch interface for HDMI
1 x HDMI 2.0 in—HDCP compliant

Interfaces - optional
With Ricoh IWB Controller OP-5 Type 2
10Base-T/100Base-Tx/1000Base-T
Bluetooth—embedded
IEEE 802.11 ac/a/b/g/n/ax
1 x HDMI output
2 x USB 3.0 Type A
2 x USB 2.0 Type A
1 x USB Type C
1 x 3.5 mm mic jack
1 x 3.5 mm headphone jack
Windows

System
Windows 10 Professional, 64-bit
*This device meets the system requirements to install Windows 11.

Multi-touch
Windows 7, 8, 10

Single-touch
Windows XP

Macintosh
Single-touch
Mac OS X
Supported languages
On-screen display
Japanese, English, French, German, Italian, Spanish, Dutch, Danish, Russian, Polish, Swedish, Norwegian, Finnish, Brazilian Portuguese, Czech, Romanian, Greek, Turkish, Simplified Chinese
Power source
100–240 V, 50–60 Hz
Power consumption

Without optional controller
460 W—max brightness
340 W—typical
0.5 W or less—standby

Environmental standards
REACH
ErP Lot 5
EU battery (2006/66/EC)
EU packaging (94/62/EC)
WEEE
RoHS EN63000 (CE marking)
Safety standards
EN62368-1 (CE marking)
EN62368-1 (TUV)
IEC60950-1 / IEC62368-1 (CB attestation)
TH-A (Thailand)
Electromagnetic Compatibility (EMC) standards
EN55035,EN55032,EN61000-3-2,EN61000-3-3 (CE marking)
AS / NZS CISPR32 (C-Tick) (Australia / NZ)
HK EMC (Hong Kong)
EN62311 (CE marking)
Wireless LAN standards
EN300328 / EN301893 (CE marking)
EN301489-1 / EN301489-17 (CE marking)
EN300328 / EN301893 (RCM) (Australia / NZ)
EN301489-1 / EN301489-17 (RCM) (Australia / NZ)
Operating environment

Temperature
0–32ºC—operating
-10–50ºC—storage

Humidity
20–80%—operating
15–80%—storage
